The AG SmartBot

The Essential IP Network Report & Diagnostic Tool For All Security System Installations.

The AG SmartBot makes connecting fire alarms, burglar alarm, surveillance systems and access control systems to IP networks easier than ever
While networking alarm system components (CCTV cameras, IP cameras, access control systems, DVR's, NVR's) together,
the AG SmartBot provides essential, detailed information about your client's IP network in under 3 minutes.


Simple 1 Step Operation

Simply plug in the AG SmartBot into your client's network & in 3 minutes a single comprehensive report
is ready and emailed to your office. No wi-fi passwords or access to your client's computers is required.

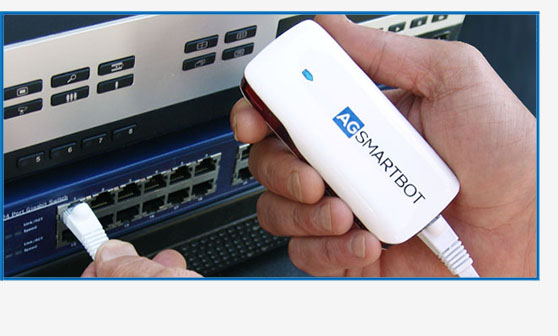

Plug the AG Smartbot into your client's network and turn on to begin generating a report.

The LED status indicator on the front of the device indicates when the device is performing a test and then signals completion.

Flashing Blue: The Device is powering up, connecting to our servers and performing the assigned tests.

Solid Green: The AG SmartBot has completed testing and is sending the complete network report to your laptop, office or any destination you choose.

Report Details View Sample Report

AG SmartBot Specifications


Battery
Capacity: 1800mAh
Runtime Between Charges: Approx. 300 tests

Function Buttons
Power Switch
Reset
Power Indicator

External Interface
1x Mini USB - Power Charging Port
1x Standard USB - For Future Use
1x RJ45 (Ethernet) 10/100 - Network Connection

Dimensions
H: 100mm
W: 45mm
L: 25mm

Weight
60 Grams

Enviromental Tolerances
Operational Temperature: -10°C to +55°C
Operational Humidity: 10% to 80%
Storage Temperature: -20°C to +60°C
Storage Humidity: 5% to 90%
